I have the EON One Pro. I'd like to connect my S1 Pro and use a monitor. What's the best way to do this? FYI...I plug in two mics and two guitars with my Tonematch that is connected to the EON One Pro.
Hi, B-Man.
What model is your ToneMatch mixer (T1, T4S, T8S)?
Thanks,
ST
It's the T1....sorry.
Hi, B-Man.

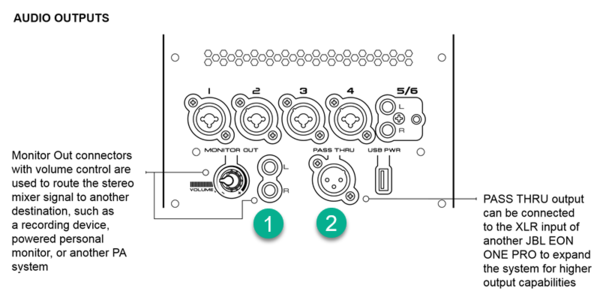

Looking at the EON ONE PRO User Guide, there are two outputs you can use to send a signal to the S1 Pro.
Use #1 (Monitor Out) with an RCA to 1/8 inch Tip-Ring-Sleeve cable connected to the S1 Pro Aux input.
OR
Use output #2 (PASS THRU output) with an XLR cable to the S1 Pro channel 1 or 2.
OR
Create a separate monitor mix in the ToneMatch mixer, and connect the ToneMatch Mixer Aux Output to the S1 Pro.
ST
Hi, B-Man.
B-Man posted:It's the T1....sorry.
To create a separate monitor mix with your T1 see:
T1 ToneMatch® Audio Engine Aux Output
--?8T? Please click the picture for more details ?T8?--
and connect the Aux Output to the S1 Pro.
ST
Okay...thanks. Appreciate the info.
