Line out to F1 Sub first or F1 812 first

Portable PA
1

I was wondering what difference if any between connecting line out from the mixer to the F1 sub then to the F1 812 or vice versa?

2

Hi AJ,

The biggest difference is - if you start with the F1 Model 812 first, you can add gain in the mixer section that is passed through to the F1 Subwoofer.  This can be useful if your signal source isn't high enough to drive the F1 Model 812 and F1 Subwoofer to full output.



F1 Model 812 First

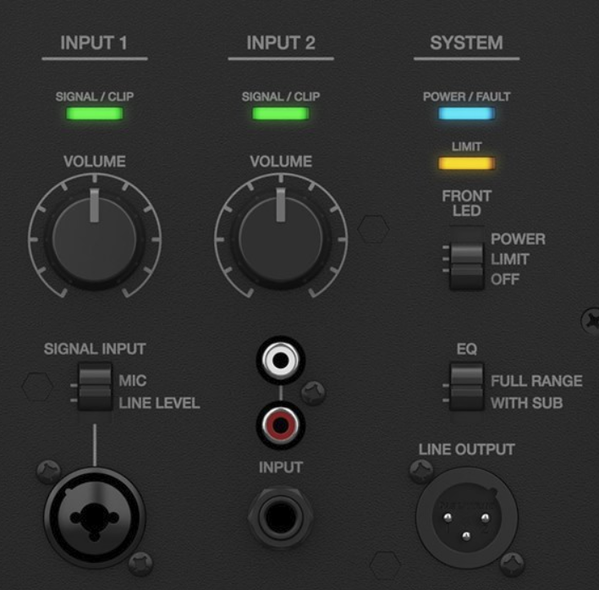

The F1 Model 812 has two inputs: INPUT 1 and INPUT 2. The LINE OUTPUT is a post-Volume mix of the two inputs.   This is a two channel mixer. The mix (and any gain you add here) is passed through to the F1 Subwoofer. Here's the F1 Model 812 input panel.

mceclip0.png599×590 241 KB

  • If you connect to the F1 Model 812 first, you can use both inputs and have those go through to the F1 Subwoofer that comes later in the signal chain.
  • If you need to add input gain to both the F1 Model 812 and the F1 Subwoofer (downstream from the 812), then connect to the F1 Model 812 first.

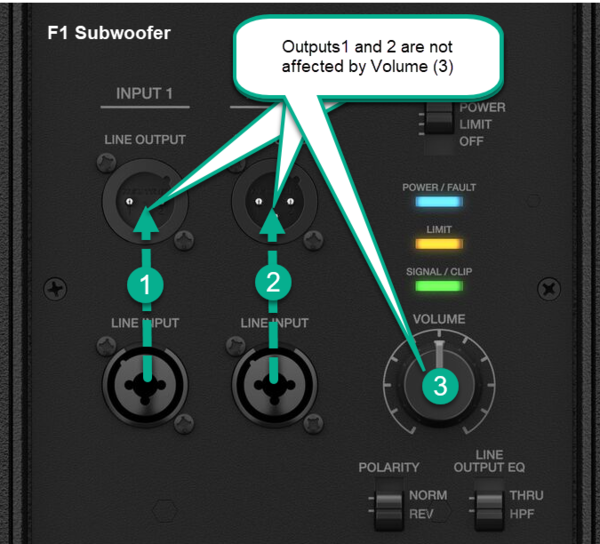

F1 Subwoofer First

mceclip0.png600×544 240 KB

Does that help?
ST

3

Hi ST

Thanks for the help I will set up next time  going into the 812 first rather than as it says in the manual go into the sub first and see how I go.



4

Hi AJ,

The manual doesn't cover all possible use cases.

Please come back and tell us how all of this works out for you.

Thanks,

ST

5

mceclip0Hola ST.

Esto quiere decir que los canales L y R pasarán sin ser afectados por el volume.

Si pongo en Mínimo el potenciómetro (3) el subwoofer dejará de sonar y solo se escuchara el L y R ?

Gracias por tu tiempo.

Andy.

6

Hi Andy,

From Google Translate

Hello ST.

This means that the L and R channels will pass without being affected by the volume.

If I set the potentiometer (3) to minimum, the subwoofer will stop playing and only the L and R will be heard.

Thanks for your time.

Andy

Andy are you asking a question?

ST

7

Si. Es una pregunta. Disculpas si no fui claro. Perdón

8

Hi Andy,

From Google Translate

Hello ST.

This means that the L and R channels will pass without being affected by the volume.

Yes



If I set the potentiometer (3) to minimum, the subwoofer will stop playing and only the L and R will be heard.



Yes



Thanks for your time.

Andy



Is that what you need to know?

ST

9

Si... ST.

Muchas Gracias por despejar mi duda. Parece obvia la pregunta, pero al no disponer del producto y la dificultad del hablar en otro idioma se me hace difícil.

Gracias a usted me estoy enterando e informando de características esenciales que me ayudan a tomar la mejor decisión.

Pronto tendré en mis manos un F1 SUBWOOFER para anexar a mis 2 S1 PRO y estoy seguro que gracias a su ayuda voy a poder sacar el máximo provecho a estos sistemas. Abrazo

Andy.
