Mixer Hookup

Portable PA
1

Hello, I have just bought a  Allen & Heath ZED60-14FX mixer, could anyone please give me advise on how to hook this up to two L1 Compacts. Thanks



2

Hi Wireworm,

Thank you for joining the Community.

From the Allen & Heath ZED Sixty-14FX

Connect the Left output to one L1® Compact and the Right output to the other L1® Compact.

On the L1® Compacts set the ToneMatch switch to Line Level (down).

For each L1® Compact use a cable like this.

Set Channel 1 volume to zero.

Set the Channel 2 volume so that you see solid green most of the time. If you see solid red, turn it down. Then control the overall volume from the mixer.

Does that help?

ST

3

Thanks ST, very helpful

4

Hi Wireworm,

Please tell us about your music.

Thanks,

ST

5

Hi Wireworm,

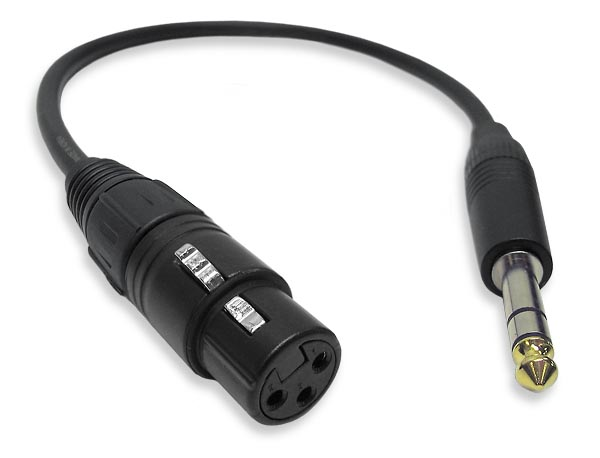

Please note this correction. The cables should look like this.

ST
